JOKINE3D delivers all three premier passive 3D effects: In-depth, Onscreen, and Pop-out, providing an unparalleled viewing experience for cinema audiences.
The latest JOKINE3D system represents the 6th generation of cutting-edge technology. Designed for ease of use and portability, it offers effortless installation by even an amateur apprentice in just 20 minutes. The system’s versatility allows it to be relocated to an adjacent 3D screen within minutes, enabling seamless transitions for playing additional 3D movies. With only two connecting wires, it integrates with your digital DCI projector in less than a minute, ensuring a hassle-free setup and configuration.
We take pride in offering numerous client references for assessing our product quality, along with opportunities for onsite visual demonstrations.
View Brochure
Single Beam 3D
8 Years Warranty
Rs.1,68,999/- (1,47,999/-)dp
Single Beam 3D
5 Years Warranty
Rs.1,35,999/- (1,17,999/-)dp
Single Beam 3D
2 Years Warranty
Rs.1,13,999/- (96,999/-)dp
Single Beam 3D
8 Years Warranty
Rs.1,68,999/- (1,47,999/-)dp
Single Beam 3D
5 Years Warranty
Rs.1,35,999/- (1,17,999/-)dp
Single Beam 3D
2 Years Warranty
Rs.1,13,999/- (96,999/-)dp
The Jokine3D Pop-out Effect creates a stunning visual impact, projecting imagery beyond the screen and immersing the audience like never before. This standout feature is a rarity among other 3D systems currently available in the market.
JOKINE3D stands out as a leader in its category, unmatched in brightness and pop-out effects. No other passive 3D brand offers the same level of performance, making JOKINE3D the ultimate choice for theatres prioritizing high-quality 3D visuals.
Jokine3D has been delivering reliable service and high-quality performance since 2010, with over 1,945 installations worldwide. Valued customers consistently praise its exceptional effects and reliability.
JOKINE Polarized 3D System is the only product that provides both high performance and reliability, which is a must in the Cinema Industry.

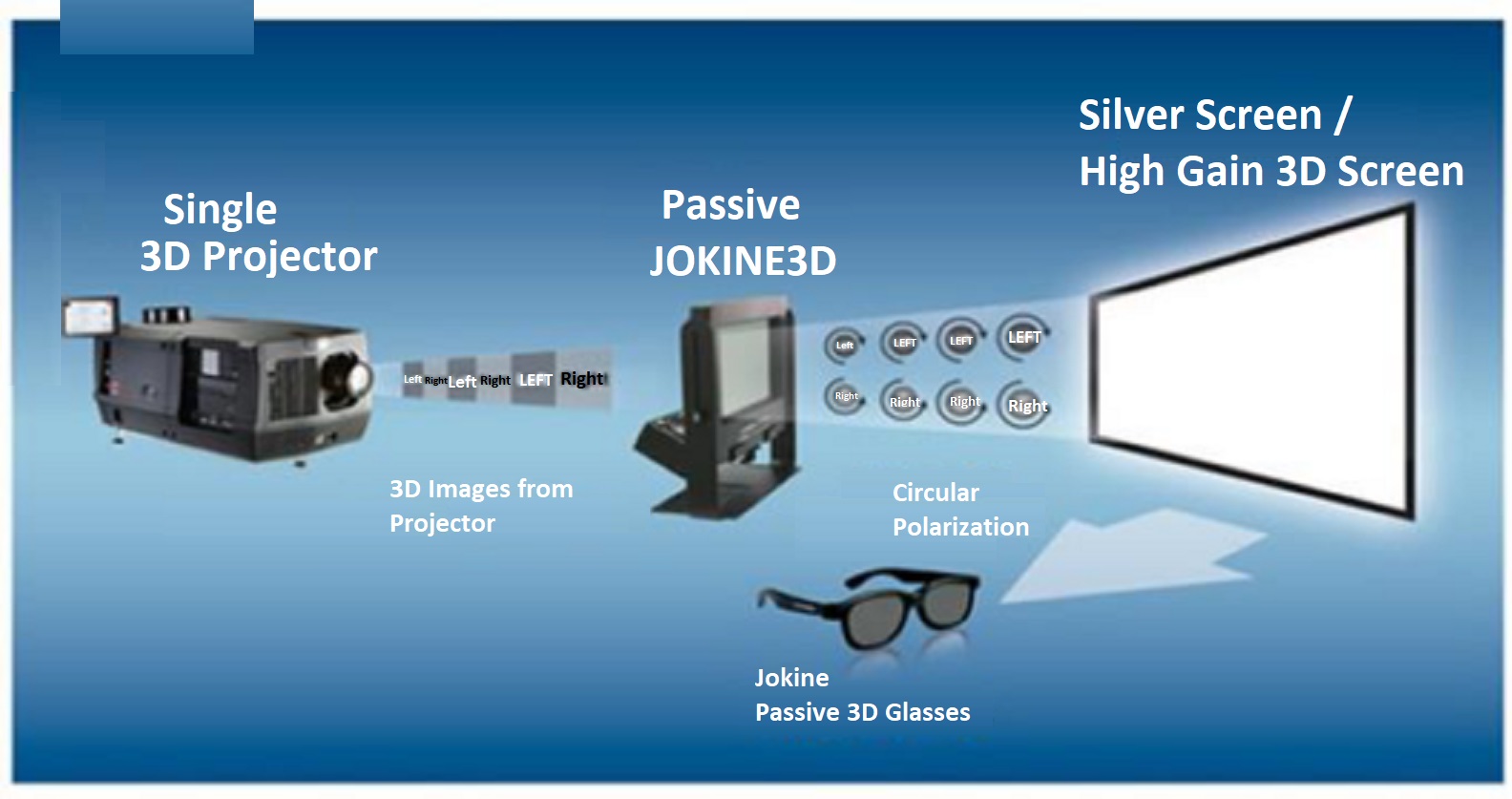

JOKINE3D Single Beam Passive System, uses polarization filter mirror with high transmission and unique light technology. It delivers excellent brightness while requiring only a single projector, achieving a remarkable light transmittance of up to 48%, the highest in its class.
JOKINE 3D* FILTER automatic image calibration and optimization technology with image segmentation and seamless splicing realizes lowest ghost and highest image resolution for an exceptional viewing experience.
JOKINE3D Passive system is the 1st and the Only Indian Brand.
Jokine3D high tech precision technology is one of the finest. Using only high-quality spares and components assures longtime reliability, while delivering stunning theatrical Pop out and excellent in-Depth effects to its viewers.
Jokine3D’s Superior polarization filter mirror with high transmission and unique light technology. which ensures maximum transfer of projector brightness on to the screen, with crisp clarity for you to experience a true JOKINE3D digital cinema experience.
Operates seamlessly with single DLP digital 3Dcinema projector, with light and affordable polarized passive 3D glasses, which ensures vivid and immersive 3D visuals.
Newly patented technology makes JOKINE3D System one of the world’s fastest polarization switch for 3D digital cinema. With a powered, symmetrical 50 microseconds switching time between the eyes, Polarized 3D System easily ensures brightness, low-crosstalk operation even at 3D HFR (high frame rate) targets of 24 FPS, 48 FPS.
Paired with a high-gain silver screen and digital cinema projectors up to 30K lumens, the Jokine3D Polarized Passive System delivers spectacular 3D visuals on screens up to 30 meters wide, using inexpensive passive circular polarized 3D glasses.
After rigorous testing in 2017, Jokine3D earned the prestigious "Approved" status from Hollywood’s Walt Disney U.S.A., cementing its reputation for quality and innovation.
After rigorous testing in 2017, Jokine3D earned the prestigious "Approved" status from Hollywood’s Walt Disney U.S.A., cementing its reputation for quality and innovation.
| MODEL NO: | JOKINE Single Beam |
|---|---|
| Applied Projector | DLP Projector, DCI Projector |
| Applied Server | Digital Cinema Server Certified by DCI |
| Applied Screen | Silver Screen 80 ft width |
| Screen Gain | Reflective Screen / Silver Screen with Gain 1.8 to 4.4 |
| Storage Temperature | -10 to 60°Cent |
| Working Temperature | 0-50° Cent |
| Image Conversion Machine | Size; 250 x 240 x 125 mm |
| 3D Model Color | Black |
| Polarized Type | Circular Polarized |
| Work Frequency | 96-600Hz support the mainstream 24frame, 48frame and also 60frame rate movies |
| Optical Light Transmittance | 48 % |
| High Light Efficiency Factor (LEF) | 19 % (-, + 1%) |
| Maximum Lamp Power | 32000 Lumens |
| HRF | Up to 240Hz |
| Projector Lens | The Diameter <150mm< /span> |
| Projection Throw Ratio | >1.0 |
| Dark Time | >450 us |
| Delay Time | 0 us |
| Stereoscopic Contrast | 150:1 |
| Polarization Degree | Real D |
| High Contrast | 150:1 |
| Ghost (Cross Talk) | <0.50%< /span> |
Over the past 14 years, with more than 1,945 installations worldwide, Jokine3D systems have demonstrated remarkable reliability, with only 0.1% of reported malfunctions. This remarkable performance reflects the exceptional quality standards we maintain at all times.
While our system is highly reliable, however, as with any electronic or automated device, occasional assistance may be required. Before contacting us for support, we kindly request that you ensure the following steps before reaching out to us.
Verify that the power adapter plug is connected properly according to the installation guidelines.
Ensure that the power switch is turned on and functioning correctly.
Ensure the LED on the power adaptor glows bright red or green. This indicates that electricity is reaching the adaptor, and it is functioning properly. If the LED is not glowing, recheck Steps 1 and 2.
Verify that power is being supplied to the modulator control unit and that the modulator is switched on as per the installation instructions.
Ensure the LED on the modulator box glows bright red or green. This confirms that the wires and power supply to the modulator box are functioning correctly. If the LED does not glow, recheck Step 3.
Connect the wires from the modulator control unit to the projector and the 3D filter polarizer according to the installation guidelines.
Ensure the LED on the 3D glass polarizer glows bright red. This confirms that power and functionality are intact up to the polarizer filter. If the LED does not glow, review Step 6 and ensure proper connections as per installation instructions.
If all three checks are functional but there is still an issue, it could be with the 3D optical filter polarizer, the 3D modulator, or the connecting wires. Since your system is under a comprehensive 5-year warranty, simply contact us, and we will address the issue promptly.
If the automatic shaft fails to perform during installation, there may be an issue with the channel or projector settings. Configure these settings correctly. Once the system begins functioning automatically, this test can be considered complete, and the system is properly configured.
If the system is correctly configured and functioning automatically but the 3D images appear unclear (e.g., double or ghost images), locate the small switch labeled "L/R" on the modulator box. Toggle this switch to adjust the settings and achieve clear, stunning, and exclusive 3D effects. This will ensure compatibility with your passive Jokine 3D glasses.
